Final board specification will to be similar to the first wave, with any small improvements made as deemed necessary based on feedback of version 1.

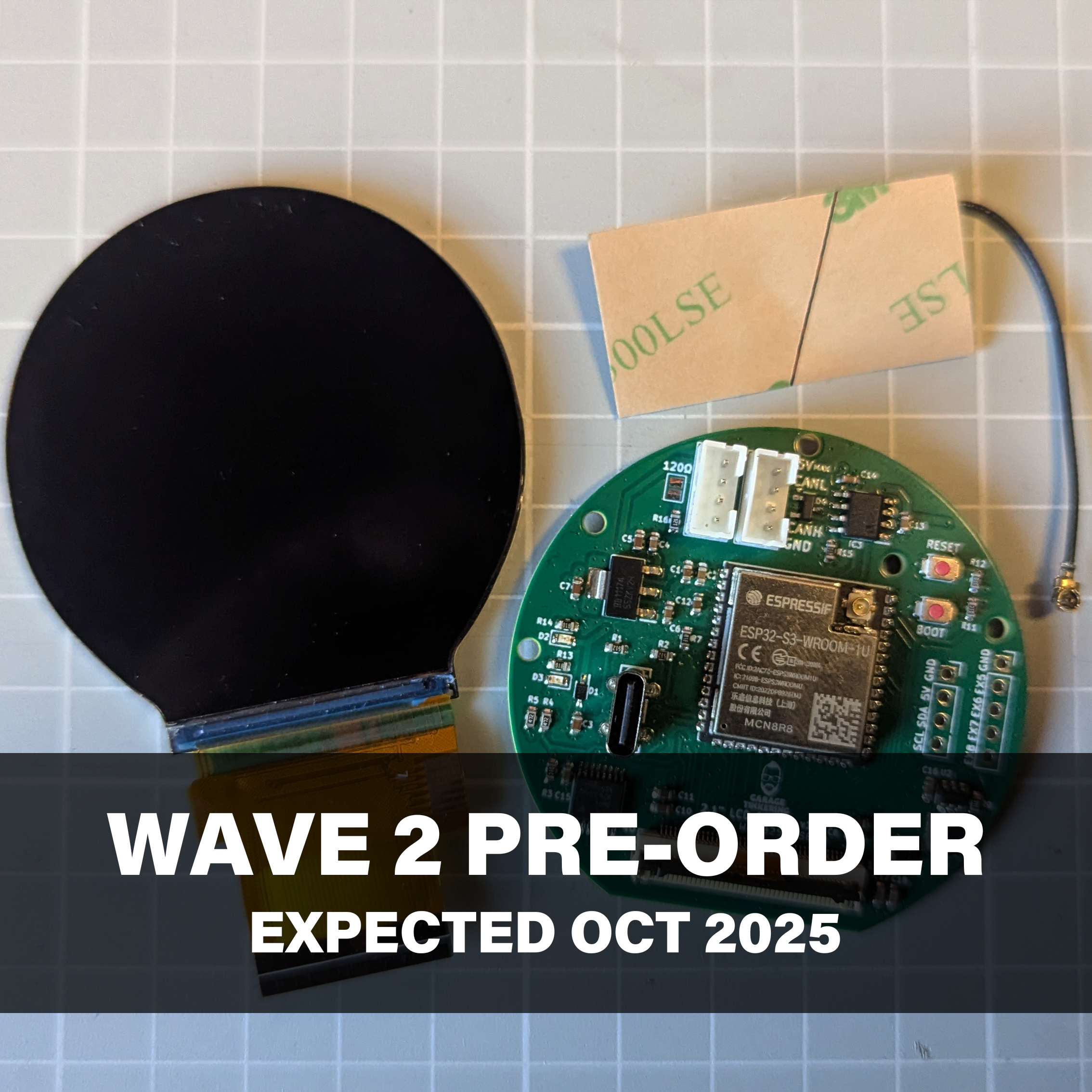

A bundle that includes both the Garage Tinkering automotive PCB v1.2 (changed as deemed necessary) and a high brightness daylight readable screen.
PCB will include:
ESP32-S3-WROOM-1U-N8R8
Daisy-chain CANBus and 5V throughput
i2c connector
GPIO connectors
Vertical UART USB
40-pin RGB LCD connection
Exclusive screen features:

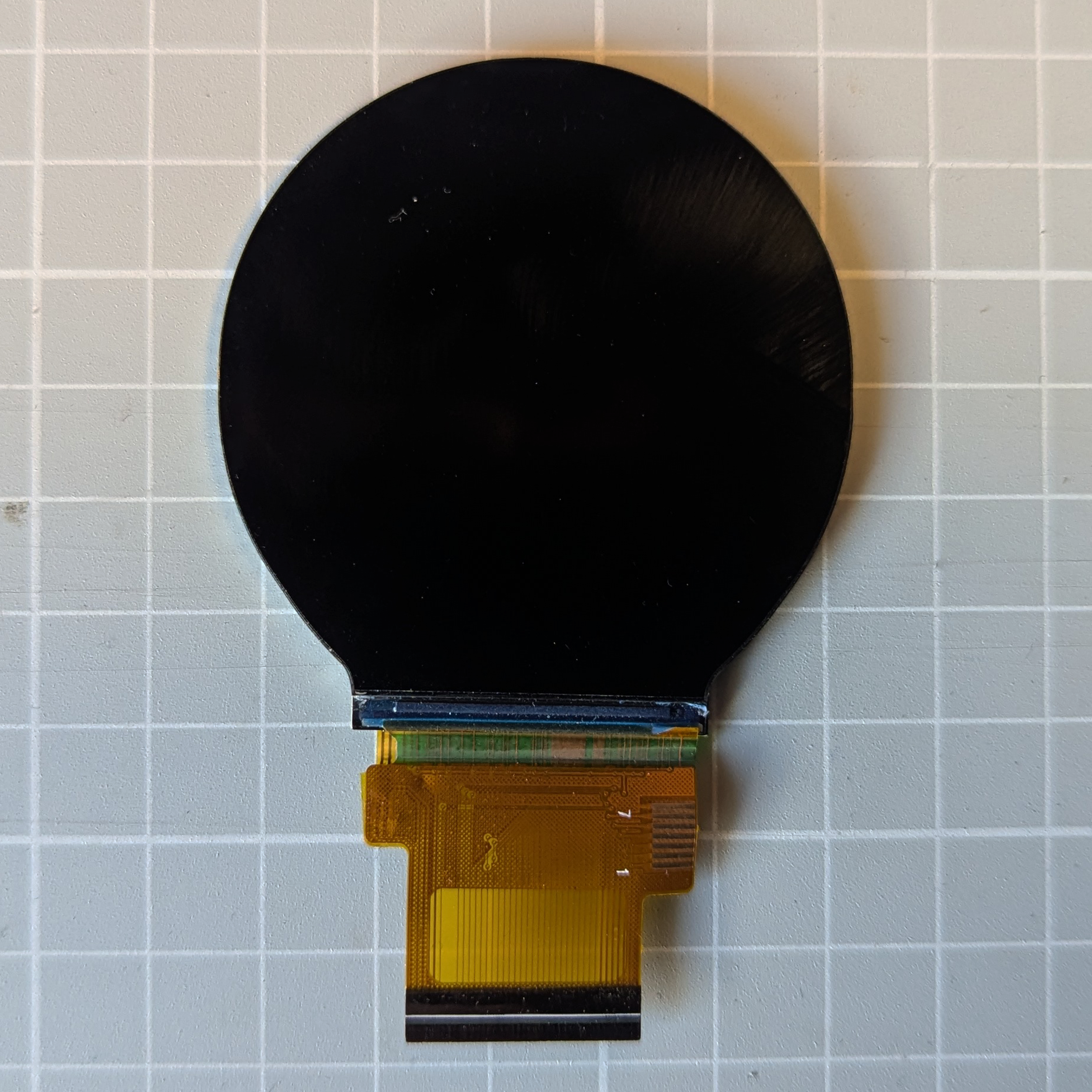

2.1” RGB LCD screen
Ultra high brightness (1000nits)
Ultra high contrast (1000:1)
Daylight and sunlight readable
A 3D printable enclosure is currently in progress and will be complete by the time these products ships. These will be provided for free at a later date if you want to get it printed. Otherwise will we offer printing and injection molded pieces shortly.
