Final board specification will to be similar to the first wave, with any small improvements made as deemed necessary based on feedback of version 1.

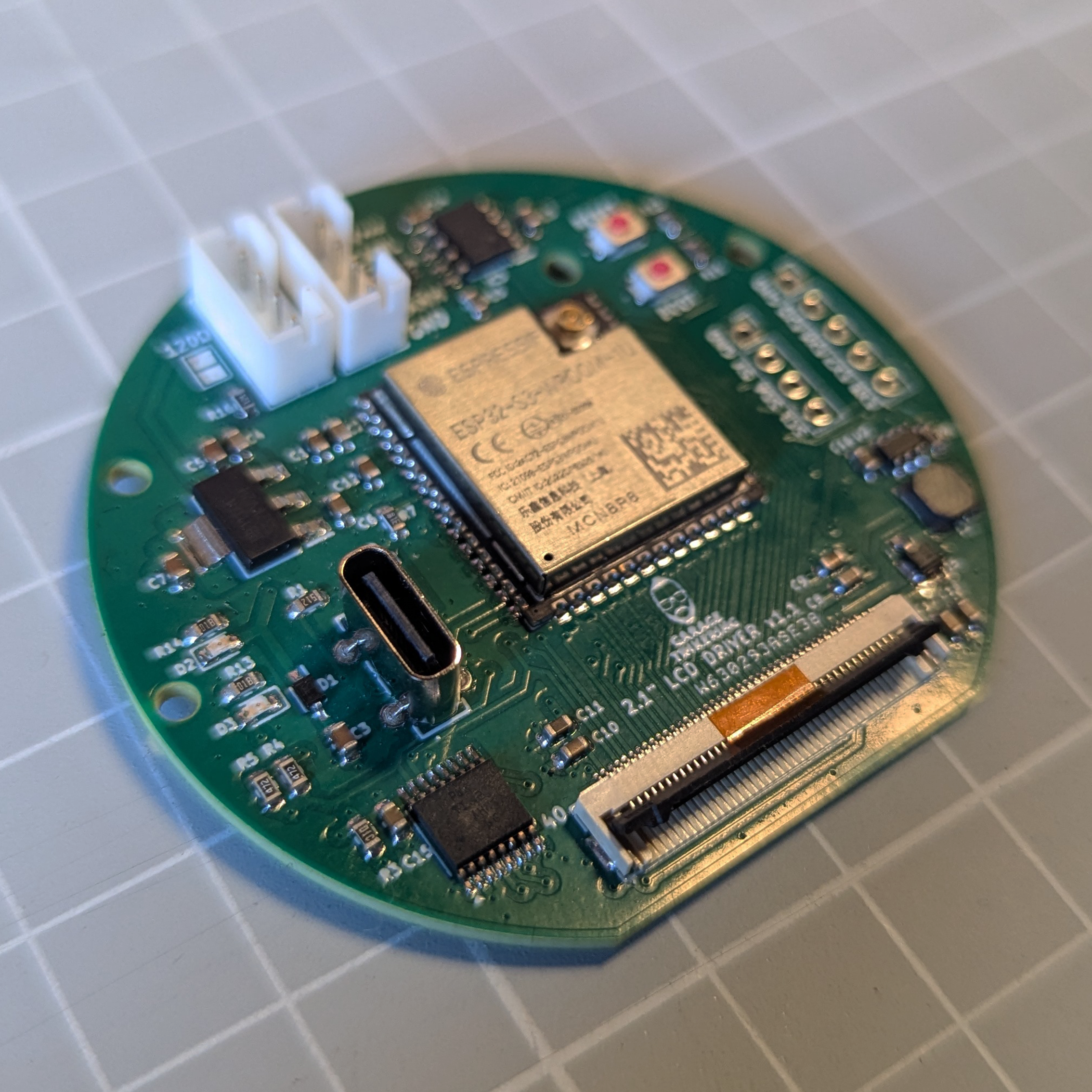

The board that drives the Ultimate Gauge design system from Garage Tinkering. Sized perfectly to accompany a 40-pin 2.1” RGB LCD.
PCB will include:
ESP32-S3-WROOM-1U-N8R8
Daisy-chain CANBus and 5V throughput
i2c connector
GPIO connectors
Vertical UART USB
40-pin RGB LCD connection
A 3D printable enclosure is currently in progress and will be complete by the time these products ships. These will be provided for free at a later date if you want to get it printed. Otherwise will we offer printing and injection molded pieces shortly.
